GDI High Flow Pump XDI-HPFP For BMW N55
$ 1,733.00
This GDI high pressure fuel pump was developed to replace the Bosch OEM high pressure pump.
It delivers up to 35% more fuel flow without any other changes to the fuel system.
Maximum Fuel Pressure is 200bar / 2900psi, the same as the OEM pump.
Available on backorder
APPLICATION
Maximum Rail Pressure200bar / 2900psi short term (e.g. at peak rpm/load)
180bar / 2600psi permanentFuel Compatibility: all known fuels, all Ethanol blendsElectric Connector: Bosch Compact 2-pinDriver Profile: XDI, tuning changes needed
180bar / 2600psi permanentFuel Compatibility: all known fuels, all Ethanol blendsElectric Connector: Bosch Compact 2-pinDriver Profile: XDI, tuning changes needed
MECHANICAL DATA
Geometric Pump Capacity
1.22cc (OEM = 0.897cc > +36% capacity)

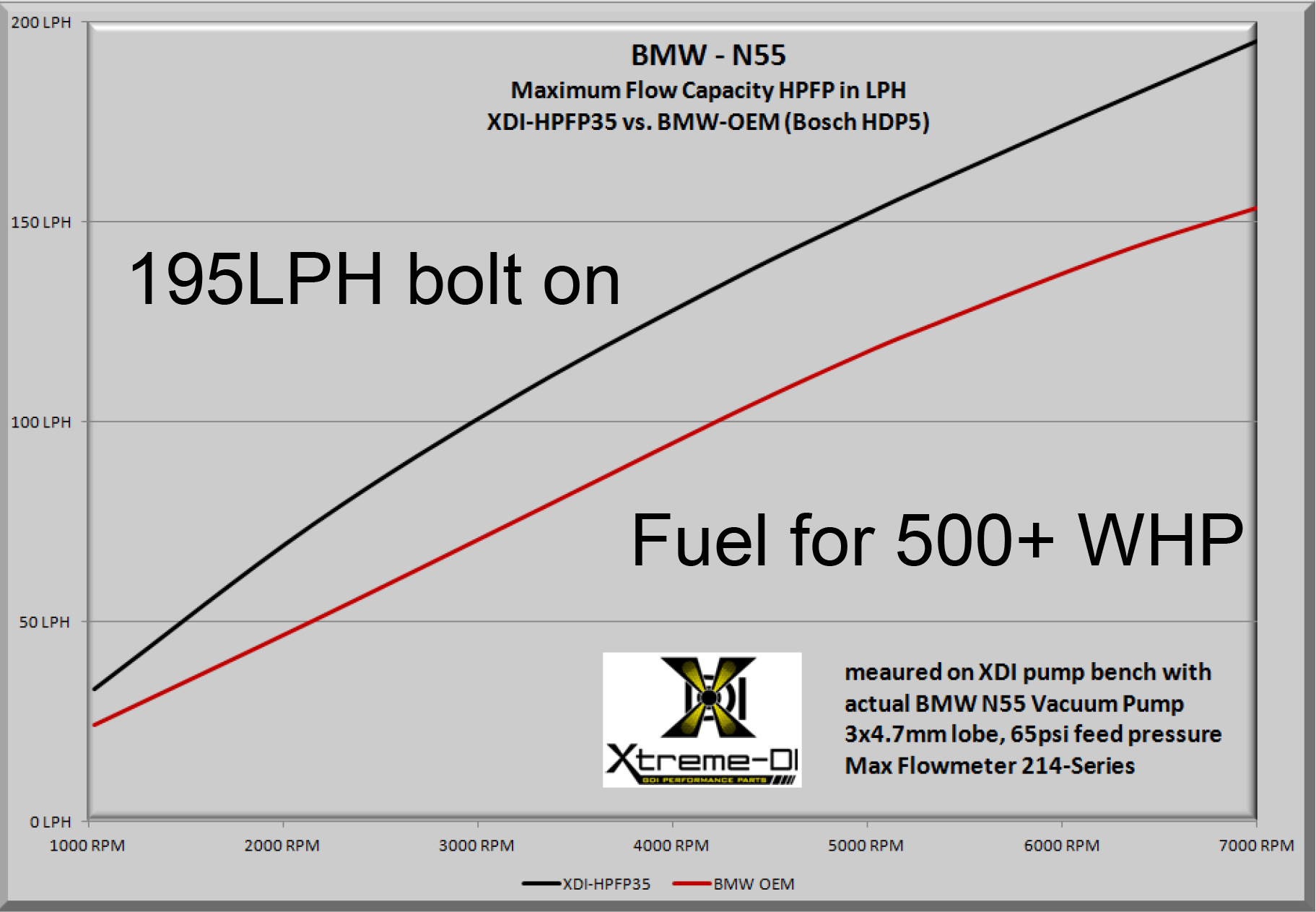

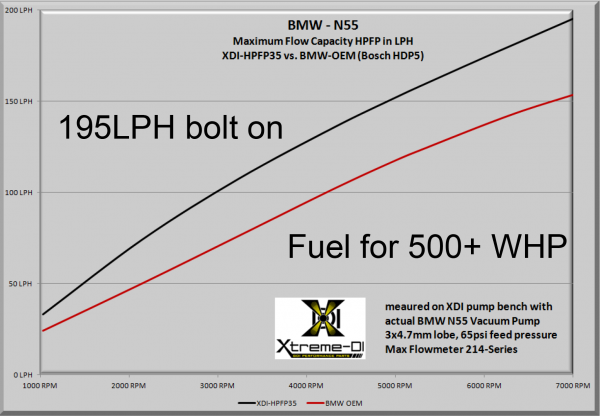

Maximum Flow Rate: 195LPH @ 7000rpm
Housing material: stainless steel hard coated Aluminum
Accessories: high pressure line, electric pigtail-6 AN inlet hose
Dry Weight: 1112 g
