GDI High Flow Pump XDI-HPFP35 For Ford F150 3.5EB Gen2 / Raptor
$ 1,599.00 – $ 2,499.00
This GDI high pressure pump was developed to replace the Bosch OEM high pressure pump. It delivers up to 63% more fuel flow when mounted on the same CAM-Lobe.
Maximum Fuel Pressure is 200bar / 2900psi with the HPFP60 250bar / 3625psi

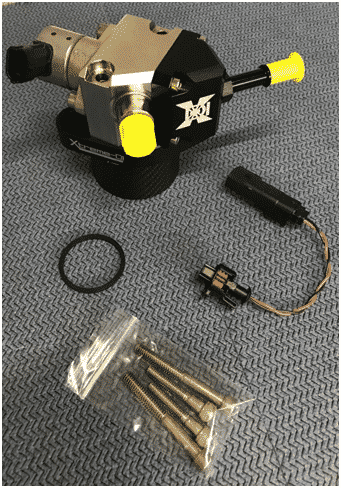

The kit comes with everything you need: the HPFP, base plate, hardware and an electric pigtail. It is a true bolt on solution, factory inlet and High Pressure line fit.
The swap can be done in your garage without any special tools.
Customer-specific fittings and lines on request.

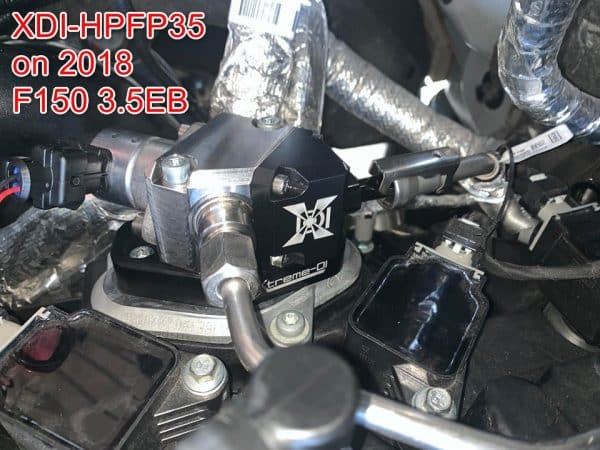

World Record F150: 11.59sec, 116MPH, with our XDI-HPFP35

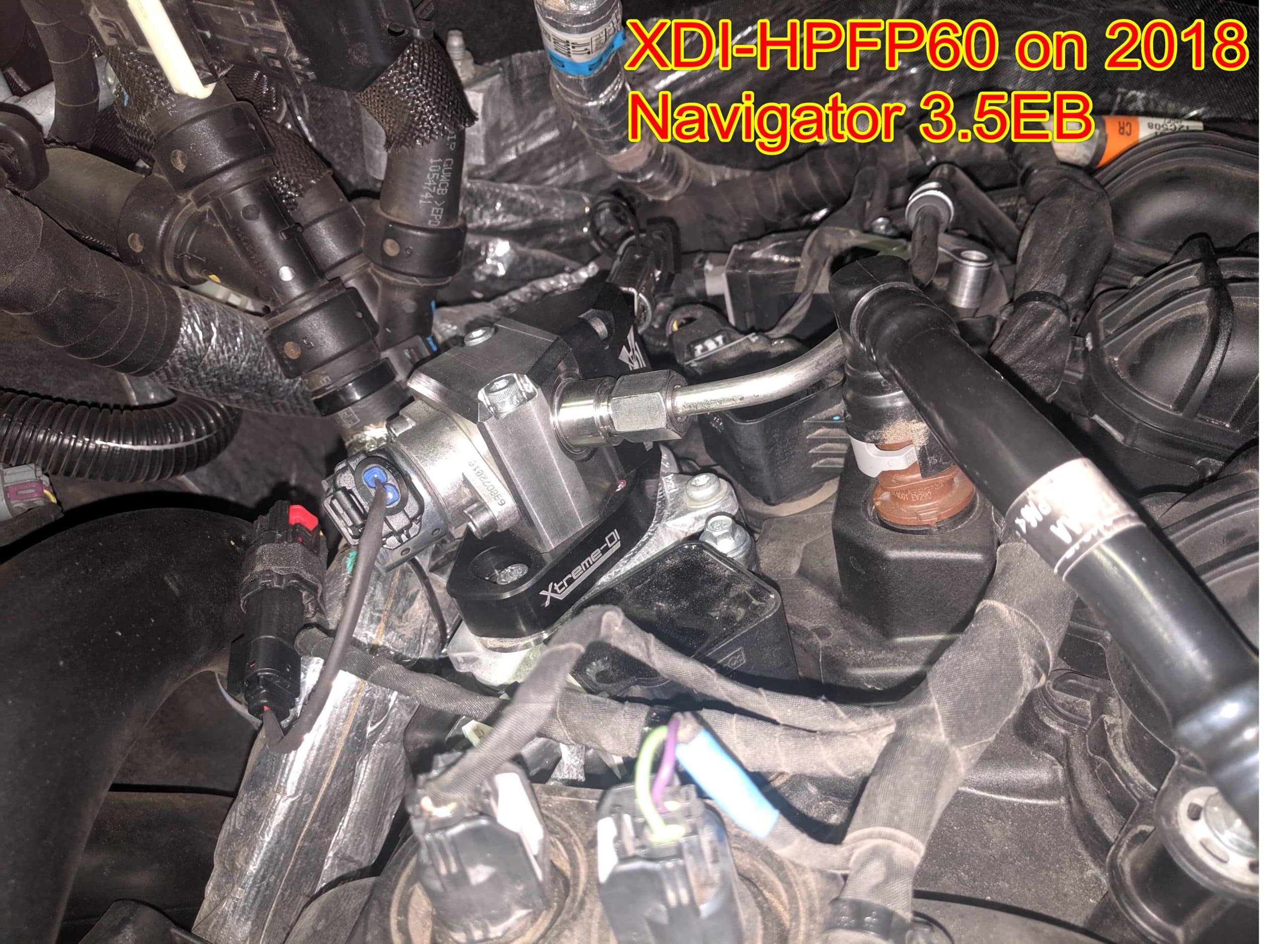

World Record Navigator: 12.85sec, 104MPH, with our XDI-HPFP60
no meth, no big port injectors, maximum DI blend, best driveability
APPLICATION
Maximum Rail Pressure
HPFP35: 200bar / 2900psi (like OEM)
HPFP60: 250bar / 3625psi (25% over OEM)
Fuel Compatibility: all known fuels, all Ethanol blendsElectric Connector: Bosch Compact 2-pinDriver Profile: XDI, tuning changes needed
HPFP35: 200bar / 2900psi (like OEM)
HPFP60: 250bar / 3625psi (25% over OEM)
Fuel Compatibility: all known fuels, all Ethanol blendsElectric Connector: Bosch Compact 2-pinDriver Profile: XDI, tuning changes needed
Accessories: electric pigtail
MECHANICAL DATA
Geometric Volume
OEM 0.897cc / rev
HPFP35: 1.22cc / rev = 36% increase
HPFP60: 1.46cc / rev = 63% increase
Maximum Flow Rate:
tbcHousing material: stainless steel, hard coated AluminumTuning Support: Standalone, SCT, HPT
OEM 0.897cc / rev
HPFP35: 1.22cc / rev = 36% increase
HPFP60: 1.46cc / rev = 63% increase
Maximum Flow Rate:
tbcHousing material: stainless steel, hard coated AluminumTuning Support: Standalone, SCT, HPT
Dry Weight: 1112 g
| Fuel Pumps | 35%, 60% |
|---|
