Fuel Compatibility: all known fuels, all Ethanol blends
Electric Connector: Bosch Compact 2-pin
Driver Profile: XDI, tuning changes needed, ECUtek
Accessories: electric pigtail Ethanol sensor optional
1.5cc (on OEM lobe 3x 5.75mm)Maximum Flow Rate:
350lph @7500rpm -HPFP35/Evo
420lph @7500rpm -HPFP60
Housing material: stainless steel, hard coated Aluminum
Dry Weight: 1112 g

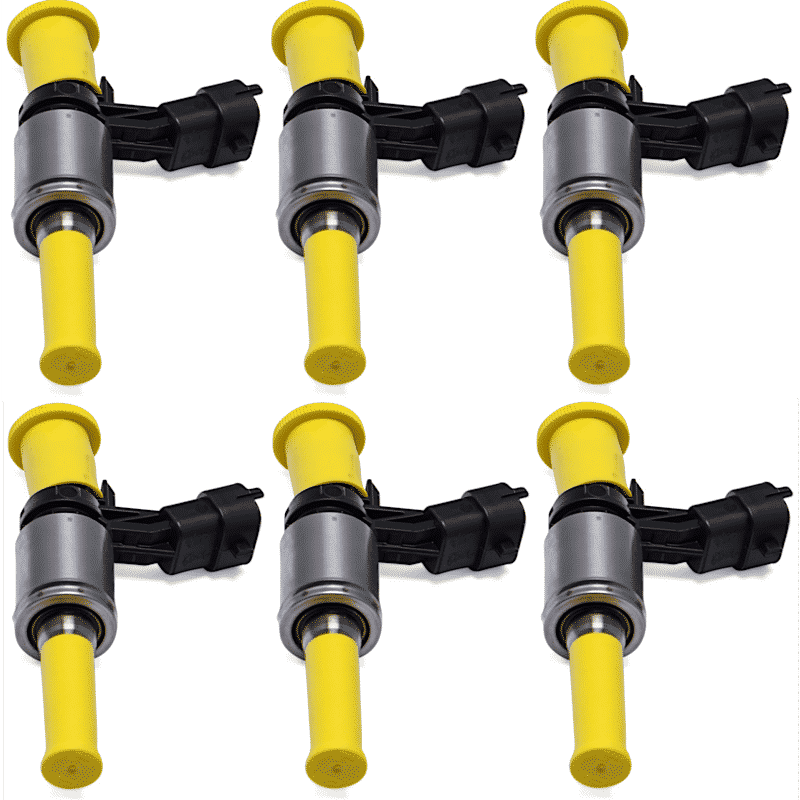

Our 100% XDI manufactured and tested DI-Injectors are designed for the VR30. These injectors supply the required fuel flow for high horsepower applications without the need for auxiliary fuel systems.
Every Injector gets tested at 100bar and 200bar on OEM testing equipment at XDI. Every set gets flow matched to within ±1% at 100bar and 200bar fuel pressure !!!
The injectors are E85 compatible.
2000cc, 50% greaterflow over stock
OEM Spray Pattern
OEM Idle Characteristics
